#<list>

The <list> component is a high-performance scrollable container that optimizes performance and memory usage through element recycling and lazy loading. It supports horizontal and vertical scrolling with single-column, grid, and waterfall layouts, making it ideal for infinite-scroll feeds and similar use cases.

#Usage

#Single-Column Layout

1. Set width and height: The width and height of <list> represent the size of its viewport, so they need to be fixed values and cannot be expanded by internal content. Only child nodes visible in the visible area will be rendered.

2. Set scroll direction and layout form: Set the attribute scroll-orientation to specify the layout and scroll direction, and set list-type and span-count to specify the layout form.

3. Configure child nodes: Use the <list-item> tag as a direct child node of <list> , and set item-key and key for <list-item>, ensuring they are consistent.

listsrc/base/index.tsx

Preview

#Multi-Column Layout

1. Set layout type and column count: Set the layout type list-type to flow (grid layout) or waterfall (waterfall layout), and set span-count >= 2.

2. Full-span child nodes in multi-column layout: Set the full-span attribute for <list-item/> to make it occupy a full row or column in the layout.

Grid Layout Example:

listsrc/flow/index.tsx

Preview

Waterfall Layout Example:

listsrc/waterfall/index.tsx

Preview

#List-specific CSS Properties

#list-main-axis-gap

// DefaultValue: null
list-main-axis-gap?: ${number}px | ${number}rpx

<list
  style={{listMainAxisGap:'10px'}}
/>

Specifies the spacing of <list> child nodes in the main axis direction, which needs to be written in the style.

#list-cross-axis-gap

// DefaultValue: null
list-cross-axis-gap?: ${number}px | ${number}rpx

<list
  style={{listCrossAxisGap:'10px'}}
/>

Specifies the spacing of <list> child nodes in the cross axis direction, which needs to be written in the style.

#Attributes

#list-type Required

list-type: 'single' | 'flow' | 'waterfall'

Controls the layout type of the <list> component, which needs to be used in conjunction with span-count.

You can find real world examples in the Multi-Column Layout section to see the difference between flow and waterfall more clearly.

#span-count Required

span-count: number

Sets the number of columns or rows for the <list> component layout.

#scroll-orientation Required

// DefaultValue: "vertical"
scroll-orientation?: 'vertical' ｜ 'horizontal'

Sets the scrolling direction and layout direction of the <list> component.

#item-key Required

// DefaultValue: null
item-key: string

<list-item item-key="item"/>

The item-key attribute is a required attribute on <list-item>.

#key Required

// DefaultValue: null
key: string

<list-item
  item-key="item-0"
  key="item-0"
/>

Use the key attribute to help the framework identify which elements have changed, been added, or removed.

#enable-scroll

// DefaultValue: true
enable-scroll?: boolean

Indicates whether the <list> component is allowed to scroll.

#enable-nested-scroll

// DefaultValue: true
enable-nested-scroll?: boolean

Indicates whether <list> can achieve nested scrolling with other scrollable containers. When enabled, the inner container scrolls first, followed by the outer container.

#sticky

// DefaultValue: false
sticky?: boolean

Declared on the <list> component to control whether the <list> component as a whole is allowed to be sticky at the top or bottom.

#sticky-offset

// DefaultValue: 0
sticky-offset?: number

The offset distance from the top or bottom of <list> for sticky positioning, in px.

#sticky-top

// DefaultValue: false
sticky-top?: boolean

Declared on the <list-item> child node to control whether the node will be sticky at the top.

#sticky-bottom

// DefaultValue: false
sticky-bottom?: boolean

Declared on the <list-item> child node to control whether the node will be sticky at the bottom.

#recyclable

// DefaultValue: true
recyclable?: boolean

"dependencies": {
  "@lynx-js/react": "^0.112.2"
}

Declared on the <list-item> node to control whether the node can be recycled, and if set to false, the <list-item> will not be recycled when it is scrolled out of the viewport of <list>.

#bounces

// DefaultValue: true
bounces?: boolean

Enables edge bounce effect.

#initial-scroll-index

// DefaultValue: 0
initial-scroll-index?: number

Specifies the node position to which <list> automatically scrolls after rendering, effective only once.

#need-visible-item-info

// DefaultValue: false
need-visible-item-info?: boolean

Controls whether the scroll event callback parameters include the position information of the currently rendering node. The scroll events include: scroll, scrolltoupper, scrolltolower.

Scroll event callback parameter format:

interface ListScrollInfo {
  // Horizontal scroll offset since the last scroll, in px
  deltaX: number;
  // Vertical scroll offset since the last scroll, in px
  deltaY: number;
  // Current horizontal scroll offset, in px
  scrollLeft: number;
  // Current vertical scroll offset, in px
  scrollTop: number;
  // Current content area width, in px
  scrollWidth: number;
  // Current content area height, in px
  scrollHeight: number;
  // `<list>` width, in px
  listWidth: number;
  // `<list>` height, in px
  listHeight: number;
  // Scroll event source
  eventSource: ListEventSource;
  // Position information of the currently rendering node
  attachedCells: [
    {
      id: number; // Node id
      itemKey: string; // Node item-key
      index: number; // Node index in list
      left: number; // Node left boundary position relative to list, in px
      top: number; // Node top boundary position relative to list, in px
      right: number; // Node right boundary position relative to list, in px
      bottom: number; // Node bottom boundary position relative to list, in px
    },
  ];
}

#upper-threshold-item-count

// DefaultValue: 0
upper-threshold-item-count?: number

Triggers a scrolltoupper event once when the number of remaining displayable child nodes at the top of <list> is less than upper-threshold-item-count for the first time.

#lower-threshold-item-count

// DefaultValue: 0
lower-threshold-item-count?: number

Triggers a scrolltolower event once when the number of remaining displayable child nodes at the bottom of <list> is less than lower-threshold-item-count for the first time.

#scroll-event-throttle

// DefaultValue: 200
scroll-event-throttle?: number

Sets the time interval for the <list> callback scroll event, in milliseconds (ms). By default, the scroll event is called back every 200 ms.

#item-snap

// defaultValue: undefined
'item-snap'?: ListItemSnapAlignment;

interface ListItemSnapAlignment {
  factor: number;
  offset: number;
}

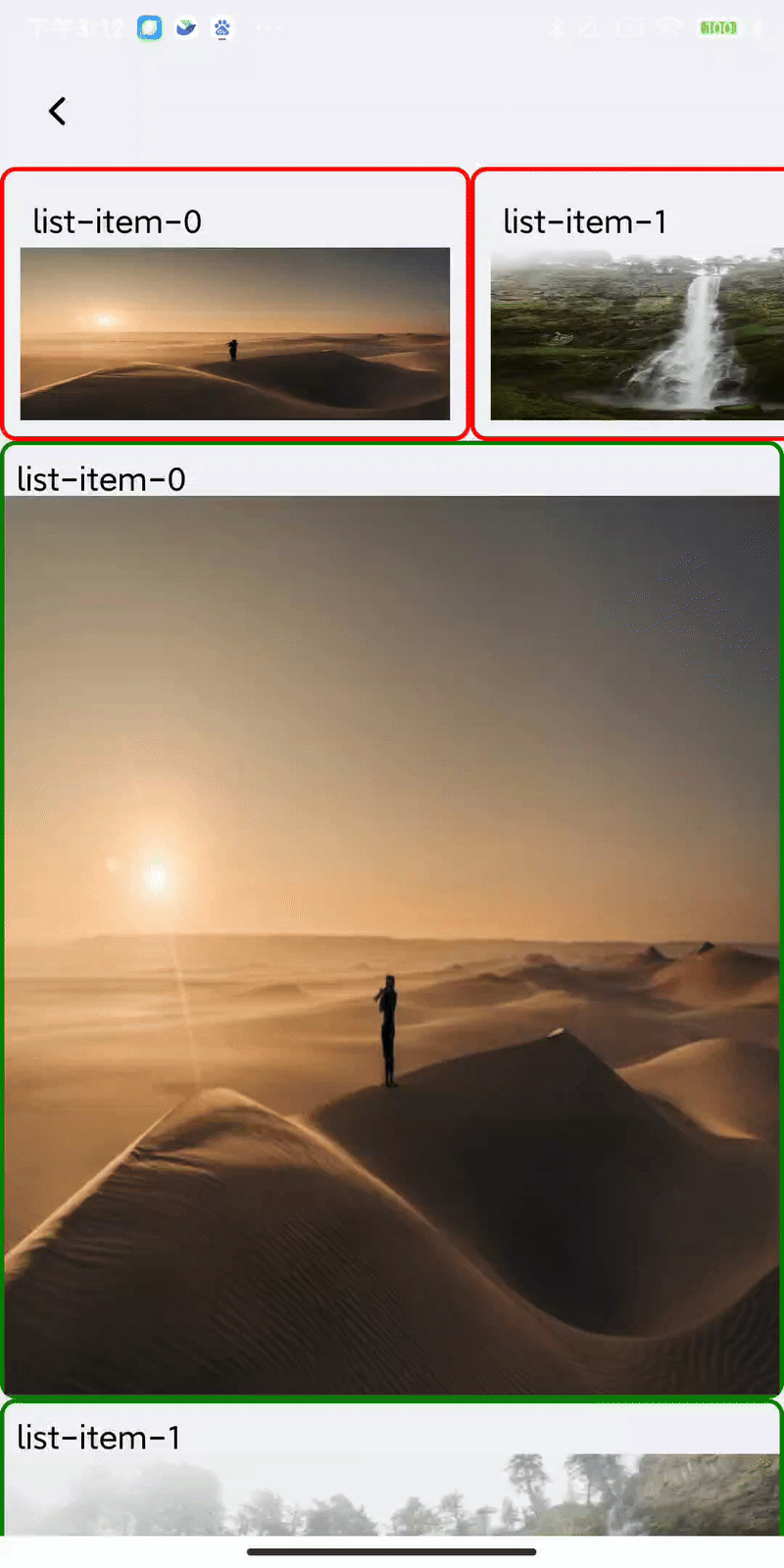

Controls the paginated scrolling effect of <list>.

Pagination parameters

• factor: The parameter for paginated positioning, with a range of [0, 1]
  • A value of 0 means the paginated scrolling <list> child node aligns with the top of <list>
  • A value of 1 means the paginated scrolling <list> child node aligns with the bottom of <list>
• offset: Additional offset parameter added on top of factor

#update-animation

update-animation?: "default" | "none"

This property controls whether the list runs animations while the data source is being updated. It currently supports insert, delete, and update animations.

Example of update-animation:

delete

update

insert

#need-layout-complete-info

Controls whether the layoutcomplete event includes the node layout information before and after this layout, the <list> Diff information that triggered this layout, and the current <list> scroll state information.

export interface LayoutCompleteEvent extends BaseEvent<'layoutcomplete', {}> {
  detail: {
    'layout-id': number;
    // Enable need-layout-complete-info
    scrollInfo: ListScrollInfo;
    // Enable need-layout-complete-info
    diffResult?: {
      insertions: number[];
      move_from: number[];
      move_to: number[];
      removals: number[];
      update_from: number[];
      update_to: number[];
    };
    // Enable need-layout-complete-info
    visibleCellsAfterUpdate?: ListItemInfo[];
    // Enable need-layout-complete-info
    visibleCellsBeforeUpdate?: ListItemInfo[];
  };
}

#layout-id

// defaultValue: -1
layout-id?: number

Used to mark the unique identifier for this data source update, which will be returned in the layoutcomplete event callback.

#preload-buffer-count

// DefaultValue: 0
preload-buffer-count?: number

This attribute controls the number of nodes outside <list> that are preloaded.

#scroll-bar-enable

// DefaultValue: true
scroll-bar-enable?: boolean

Indicates whether the <list> component scroll bar is displayed.

#harmony-scroll-edge-effect

// DefaultValue: true
harmony-scroll-edge-effect: boolean

On Harmony, when the contentSize is smaller than its own container size, set whether to enable the scroll effect.

#reuse-identifier

// DefaultValue: null
reuse-identifier: string

<list>
  <list-item
    reuse-identifier="type1"
  >
  <list-item
    reuse-identifier="type2"
  >
</list>

Sets the reuse id for <list-item>. When rendering child nodes, the <list> component reuses <list-item> based on the reuse-identifier attribute value. Only <list-item> with the same reuse-identifier attribute value will be reused.

By default, developers do not need to provide a reuse-identifier, as the framework determines it during the compilation phase. For example, when <list-item> is within a loop (e.g., Array.prototype.map), since they have the same form and position during the compilation phase, we generate the same reuse-identifier for them, allowing this group of <list-item> to be reused with each other.

#full-span

// DefaultValue: false
full-span?: boolean
<list>
  <list-item full-span={true}/>
</list>

The full-span attribute is used to indicate that a <list-item> occupies a full row or column.

#estimated-main-axis-size-px

// DefaultValue: -1
estimated-main-axis-size-px?: number
<list-item
  estimated-main-axis-size-px={100}
/>

Specifies the placeholder size in the main axis direction for <list-item> before it is fully rendered, in px. If not set, the default value is the size of <list> in the main axis direction.

#experimental-recycle-sticky-item

// DefaultValue: true
experimental-recycle-sticky-item?: boolean

When there are multiple sticky nodes, after a sticky node is pushed out of the <list> area by other sticky nodes, the node is recycled to address the memory overhead issue caused by too many sticky nodes. This optimization is enabled by default when engineVersion version is greater than or equal to

sticky nodes not recycled, the ui count will keep increasing

sticky nodes is recycled and reused, the ui count will not keep increasing

#Events

Front-end developers can bind corresponding event callbacks to components to monitor runtime behavior. The usage is as follows.

#scroll

bindscroll?: EventHandler<ListScrollEvent>;

interface ListScrollEvent {
  // Horizontal scroll offset since the last scroll, in px
  deltaX: number;
  // Vertical scroll offset since the last scroll, in px
  deltaY: number;
  // Current horizontal scroll offset, in px
  scrollLeft: number;
  // Current vertical scroll offset, in px
  scrollTop: number;
  // Current content area width, in px
  scrollWidth: number;
  // Current content area height, in px
  scrollHeight: number;
  // `<list>` width, in px
  listWidth: number;
  // `<list>` height, in px
  listHeight: number;
  // Scroll event source
  eventSource: ListEventSource;
  // Position information of the currently rendering node
  attachedCells: [
    {
      "id": number,        // Node id
      "itemKey": string,   // Node item-key
      "index": number,     // Node index in list
      "left": number,      // Node left boundary position relative to list, in px
      "top": number,       // Node top boundary position relative to list, in px
      "right": number,     // Node right boundary position relative to list, in px
      "bottom": number,    // Node bottom boundary position relative to list, in px
    },
  ];
}

enum ListEventSource {
  DIFF = 0,
  LAYOUT = 1,
  SCROLL = 2,
}

<list> scroll event.

#scrolltoupper

bindscrolltoupper?: EventHandler<ListScrollEvent>;

Callback triggered when scrolling to the top of <list>. The trigger position of this callback can be controlled by upper-threshold-item-count.

#scrolltolower

bindscrolltolower?: EventHandler<ListScrollEvent>;

Callback triggered when scrolling to the bottom of <list>. The trigger position of this callback can be controlled by lower-threshold-item-count.

#scrollstatechange

bindscrollstatechange?: EventHandler<ListScrollStateChangeEvent>;

interface ScrollStateChangeEvent extends CustomEvent {
  detail: {
    // The scroll state of this slide, value description
    //   1 - Stationary
    //   2 - Dragging
    //   3 - Inertial scrolling
    //   4 - Smooth animation scrolling
    state: number;
  };
}

Callback triggered when the scroll state of <list> changes. The state field in the event parameter's detail indicates the scroll state: 1 for stationary, 2 for dragging, and 3 for inertial scrolling, 4 for smooth animation scrolling.

#layoutcomplete

bindlayoutcomplete?: EventHandler<ListLayoutFinishEvent>;

interface LayoutCompleteEvent extends BaseEvent<'layoutcomplete', {}> {
  detail: {
    'layout-id': number;
    // Enable need-layout-complete-info
    scrollInfo: ListScrollInfo;
    // Enable need-layout-complete-info
    diffResult?: {
      insertions: number[];
      move_from: number[];
      move_to: number[];
      removals: number[];
      update_from: number[];
      update_to: number[];
    };
    // Enable need-layout-complete-info
    visibleCellsAfterUpdate?: ListItemInfo[];
    // Enable need-layout-complete-info
    visibleCellsBeforeUpdate?: ListItemInfo[];
  };
}

interface ListItemInfo {
  // Child node height
  height: number;
  // Child node width
  width: number;
  // Child node itemKey
  itemKey: string;
  // Whether the child node is in rendering state
  isBinding: boolean;
  // X coordinate position of the child node relative to the entire scroll area
  originX: number;
  // Y coordinate position of the child node relative to the entire scroll area
  originY: number;
  // Whether the child node has been updated
  updated: boolean;
}

Callback triggered after <list> layout is complete.

#snap

bindsnap?: EventHandler<ListSnapEvent>;

interface ListSnapEvent extends common.BaseEvent<'snap', {}> {
  detail: {
    // The index of the node that will be paginated to
    position: number;
    // Current horizontal scroll offset, in px
    currentScrollLeft: number;
    // Current vertical scroll offset, in px
    currentScrollTop: number;
    // Target horizontal scroll offset for pagination, in px
    targetScrollLeft: number;
    // Target vertical scroll offset for pagination, in px
    targetScrollTop: number;
  };
};

Callback when pagination scrolling is about to occur.

#Methods

#scrollToPosition

this.createSelectorQuery()
  .select('#id_of_list')
  .invoke({
    method: 'scrollToPosition',
    params: {
      position: 10,
      offset: 100,
      alignTo: 'top',
      itemKey: `${itemKey}`
      smooth: true,
    },
    success: function (res) {},
    fail: function (res) {},
  })
  .exec();

Scroll the <list> component to the specified position. Parameter description:

#autoScroll

this.createSelectorQuery()
  .select('#id_of_list')
  .invoke({
    method: 'autoScroll',
    params: {
      rate: string, //  The distance scrolled per second, supports positive and negative. Distance supports units "px/rpx/ppx" default->null (iOS value must be greater than 1/screen.scale px)
      start: bool, //  Start/pause auto-scrolling default->false
      autoStop: bool, // Whether to automatically stop when reaching the bottom default->true
    },
    success: function (res) {},
    fail: function (res) {},
  })
  .exec();

Trigger <list> auto-scrolling. Parameter description:

#getVisibleCells

lynx
  .createSelectorQuery()
  .select('#id_of_list')
  .invoke({
    method: 'getVisibleCells',
    success(res) {
      console.log('succ ');
    },
    fail(res) {
      console.log('err ');
    },
  })
  .exec();

Get information about all currently displayed <list> child nodes. The returned information is as follows:

attachedCells: [
  {
    id: number, // Node id
    itemKey: string, // Node item-key
    index: number, // Node index in list
    left: number, // Node left boundary position relative to list, in px
    top: number, // Node top boundary position relative to list, in px
    right: number, // Node right boundary position relative to list, in px
    bottom: number, // Node bottom boundary position relative to list, in px
  },
];

#scrollBy

lynx
  .createSelectorQuery()
  .select('#id_of_list')
  .invoke({
    method: 'scrollBy',
    params: {
      offset: number,
    },
    success(res) {
      console.log('succ ');
    },
    fail(res) {
      console.log('err ');
    },
  })
  .exec();

Continue scrolling the distance specified by offset based on the existing offset, in px. The returned information is as follows:

{
  "consumedX" : number,  // Distance scrolled horizontally, in px
  "consumedY" : number,  // Distance scrolled vertically, in px
  "unconsumedX" : number,  // Distance not scrolled horizontally, in px
  "unconsumedY" : number,  // Distance not scrolled vertically, in px
}

#More Features

#Sticky Elements

In the <list> component, you can achieve sticky top or sticky bottom node effects by setting the sticky-top or sticky-bottom attributes on <list-item>.

Ensure that the sticky attribute of the <list> component is set to true to allow child nodes to be sticky. You can also set the sticky-offset to determine the sticky position.

<list
  className="list-container"
  sticky={true}
  sticky-offset={50}
  list-type="single"
  span-count={1}
  scroll-orientation="vertical"
>

Set the sticky-top or sticky-bottom attributes on <list-item> to make the node sticky top or sticky bottom when scrolling. Since sticky nodes must be a full row item, you also need to set the full-span attribute for the node.

<list-item
  className="sticky-top-item"
  full-span={true}
  sticky-top={true}
  item-key={`list-item-${index}`}
  key={`list-item-${index}`}
/>

listsrc/sticky/index.tsx

Preview

#Loading Content When Scrolling to Edge

The <list> component supports infinite scroll loading functionality through two key steps:

First, set an appropriate value for the lower-threshold-item-count attribute on the <list> component. This determines how close to the bottom the scroll needs to be before triggering the load more event. Then, bind the scrolltolower event handler which will be called when scrolling reaches the bottom threshold, allowing you to load additional data.

listsrc/loadmore/index.tsx

Preview

#Pagination with item-snap

Set the factor to determine the parameter for paginated scrolling positioning, with a range of [0, 1]. 0 means <list-item> aligns with the top of <list>, and 1 means <list-item> aligns with the bottom of <list>. You can also set offset to add a scrolling offset on top of factor.

Example of vertical orientation:

listsrc/itemsnap/index.tsx

Preview

Example of horizontal orientation:

listsrc/horizontal-snap/index.tsx

Preview

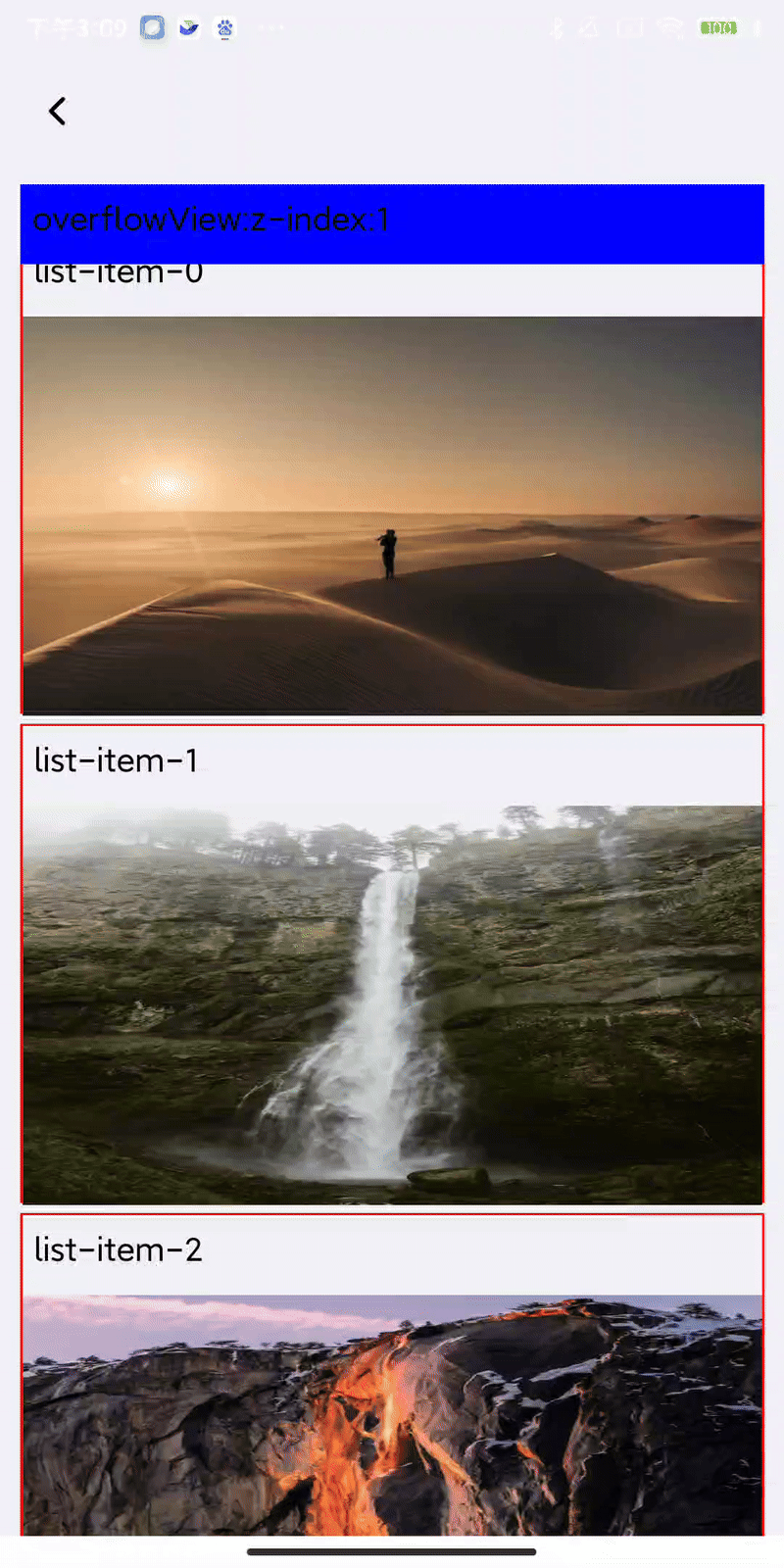

#Use z-index

listsrc/zIndex/index.tsx

Preview

#Not recycle <list-item>

By setting the recyclable property of <list-item> to false, you can prevent the node from being recycled. In this example, we added an overflowing <view> with a background color to the first <list-item>. When this <list-item> is scrolled off the screen, we can still see the <view> with background color on the screen.

listsrc/recyclable/index.tsx

Preview

#Compatibility

#<list>

#<list-item>
